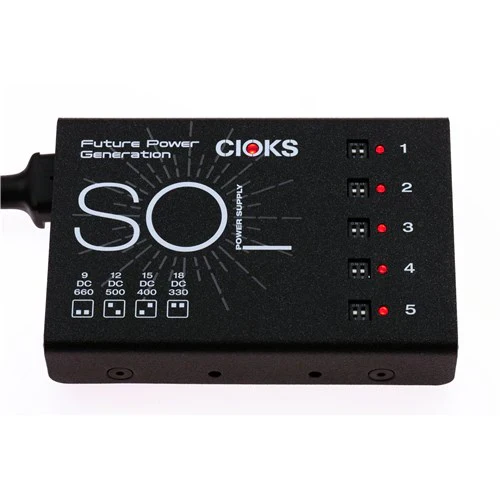

Cioks SOL Power Supply

The Heart and SOL of your Pedalboard SOL is the ultimate solution for bringing life to a small to medium-sized pedalboard setup, especially if you are using power-hungry pedals. SOL is the smallest mains-powered switch-mode power supply we make at CIOKS (no wall-warts here) and the no-frills design plus massive power will leave you free to focus on your creative spark. Featuring the same 660mA at 9V DC per outlet and four switchable voltages on each outlet as its bigger brother CIOKS DC7, SOL is the most powerful small form-factor power supply available today with a total of 30 watts of DC power available.

Features

• CIOKS SOL has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 5 isolated DC-outlets, 6W each
• 660mA at 9V on each outlet
• 4 selectable voltages on each outlet
• Total maximum power 30W
• Mounting hardware for Pedaltrain andTempleaudio Boards included
• Compatible with CIOKS GRIP v2.0 for drill-free mounting underneath Pedaltrain boards
• 9 Flex cables included
• Designed in Denmark, assembled in Poland
• 5-year worldwide warranty

Specifications

Mains input: 100-240V AC universal Outlet 1-5: 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each Total output power: max. 30W

Included in the box

• SOL power supply

• AC mains power cord (region specific)

• 9 x Flex cables

• Mounting hardware forPedaltrain andTempleaudio boards (two screws and one hex-key) • Product manual

• Flex Guide

• CIOKS sticker sheet

Flex cables included:

• 3 x 1030 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)

• 2 x 1050 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)

• 1 x 2050 - Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)

• 1 x 4050 - Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)

• 1 x 1035 - Split Flex type 1 - 30 & 50cm (black)

• 1 x 1533 - 3-way daisy chain Flex type 1, 30+30+50cm (black)
